Innovative quality inspection of turbine disks

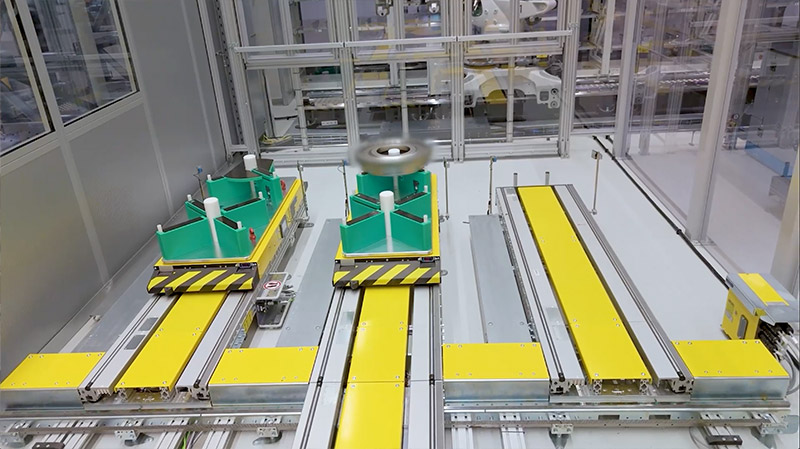

As MTU project planner Martin Gschwendtner walks through the company’s turbine disk production test center in Munich, he notices how quiet it is. There aren’t many employees to be seen; just an e-cart driving around with a component. This transport system, affectionately dubbed “conveyor-belt sushi” by the team, brings the turbine disks to the employees’ workstations for final visual inspection after the measuring process. The 900-square-meter test center, which opened in summer 2024, is unique in the world in its level of automation and digitalization. “The machines here can run fully automatically around the clock,” Gschwendtner says.

Over the next few years, turbine disks for various engine types, such as the PW800 for business jets or the geared turbofan for the Airbus A320neo, will be inspected and tested here.

A range of testing procedures for components

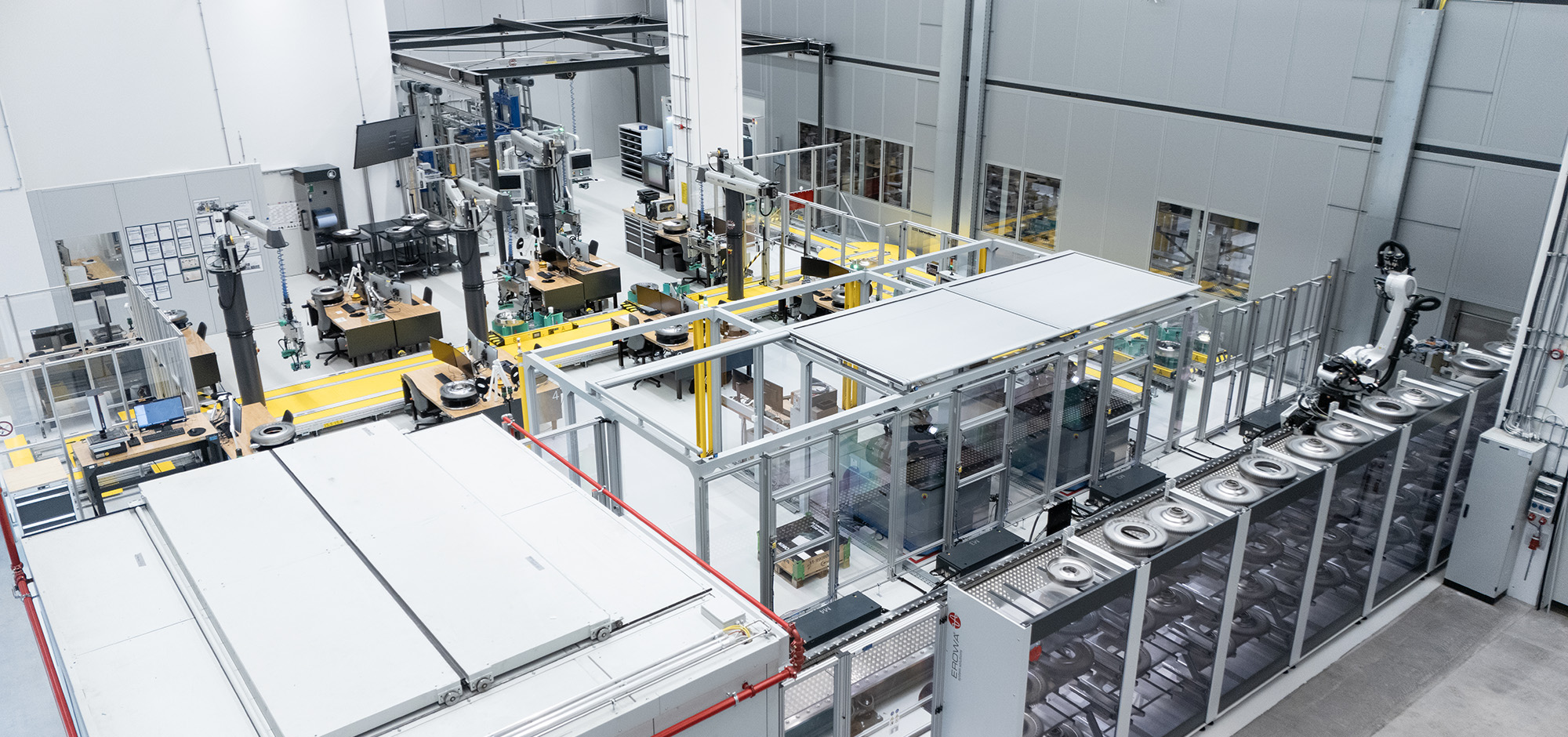

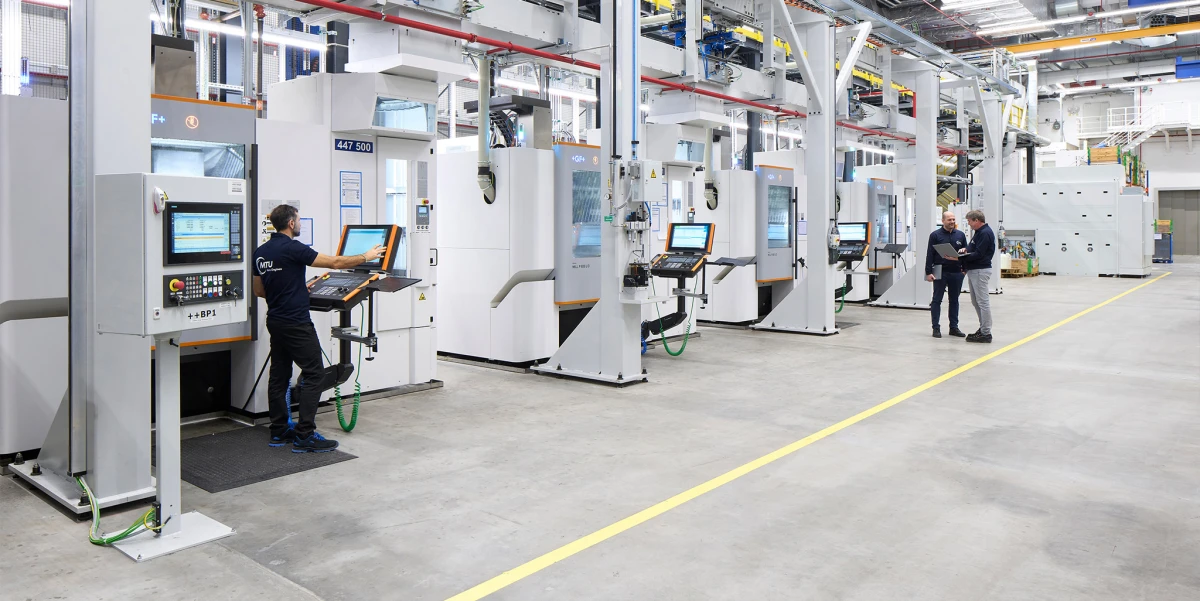

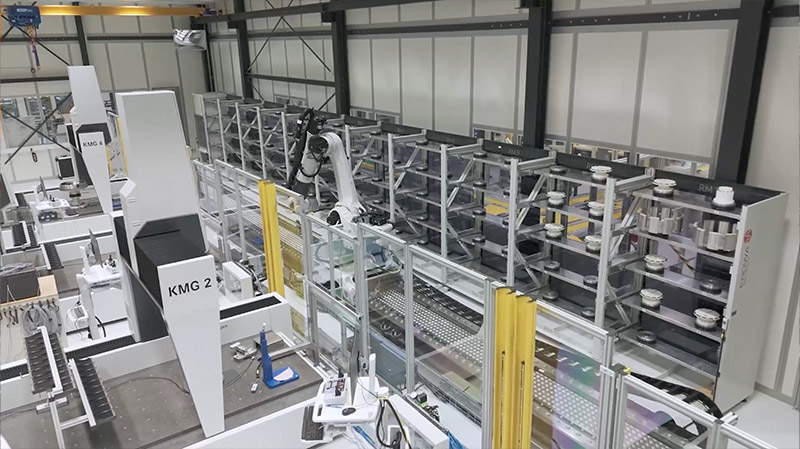

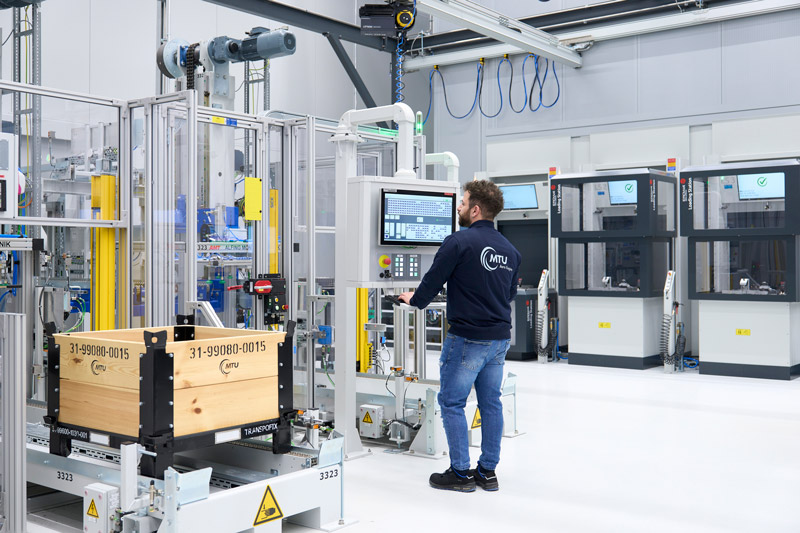

In principle, a component passes through the test center twice: once for the intermediate test and once for the final inspection. After the disks have been turned and milled one floor below, a transport system specially developed for the facility brings them up to the test center via elevator. The RFID chip on the transport crate provides information about which component is involved. Chain conveyors and conveyor belts automatically transport each component to the shelf system, which can store up to 274 turbine disks at the same time.

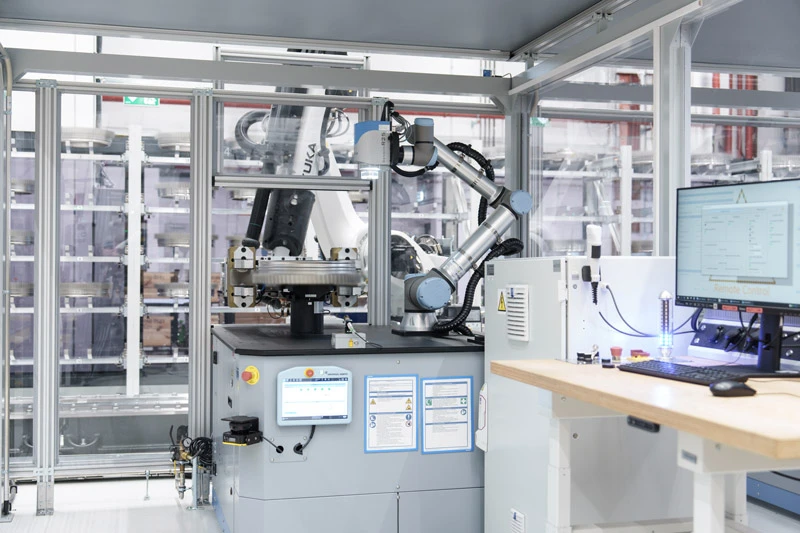

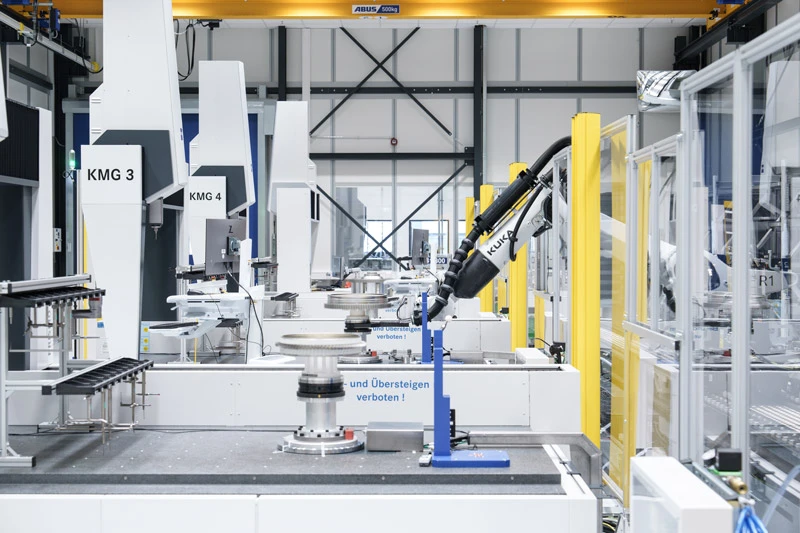

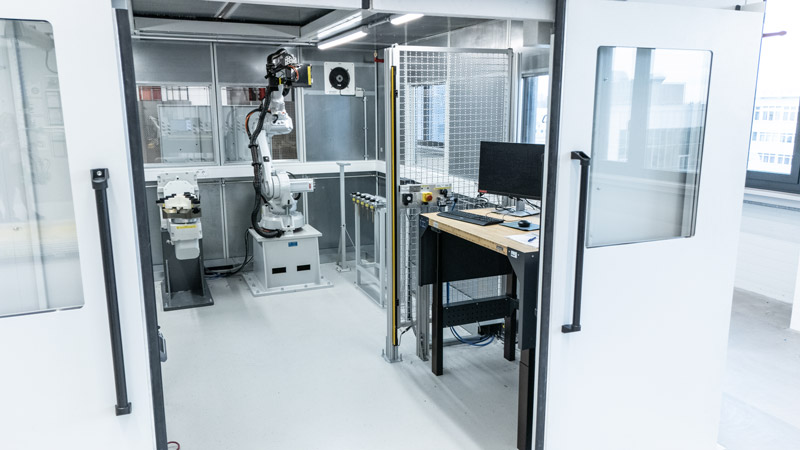

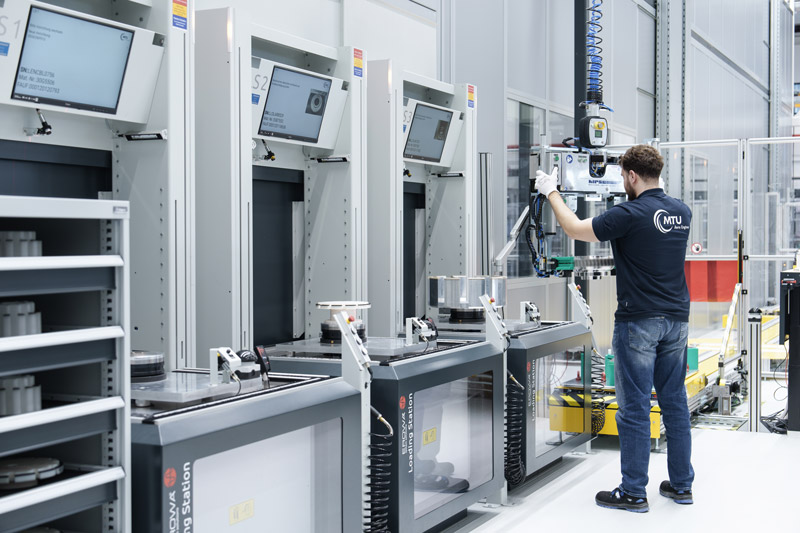

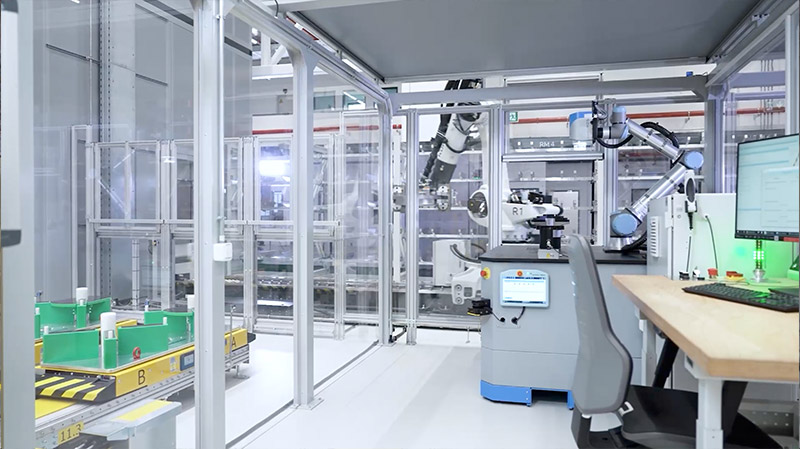

As soon as the component is stored in the shelf system, the test center’s control system can request the crate with the component for the inspection process, while the robot automatically supplies the appropriate fixture. An employee gets the component set up within a few minutes. By comparison, the next step—the inspection process on the machine—takes up to four hours; this generally requires no human intervention. The robot then automatically removes the component from the measuring machine, which moves on to the next workpiece. A separate cell is used to label the component with a measurement. This measurement aids the detection of deviations later during maintenance. Here, too, the robot guides the component automatically. The turbine disk is then placed on an optical measuring device on which various radii and edges are checked by a collaborative robot arm with a 3D measuring sensor.

Putting parts through their paces

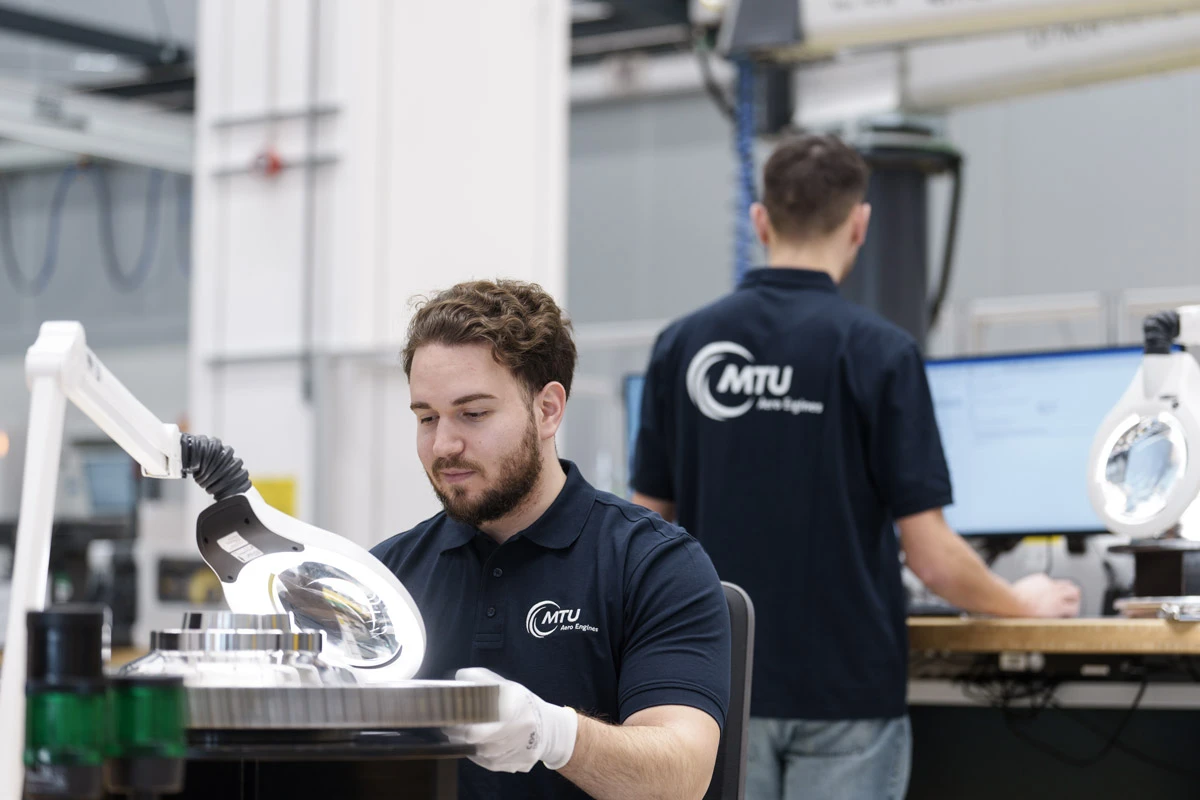

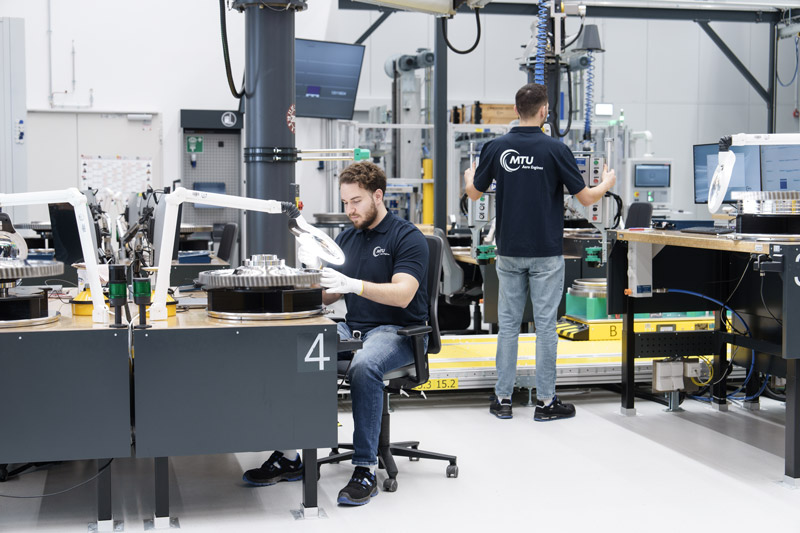

After the robot has automatically unloaded the component, it places it on an e-cart, which takes the turbine disk to the inspectors’ workstations. There, a visual inspector takes one last close look at the component; the trained eye is particularly useful in places that are difficult for cameras to see. “Once finished, the inspector gives final approval for installation in the engine,” says Hüseyin Hirlak, team leader at the test center. “This task carries a great deal of responsibility and requires a lot of experience and precision.” At facilities where there’s still a low level of automation, inspectors perform logistical tasks in addition to visual inspections. “In the new test center, by contrast, certain processes have been carefully selected for automation, allowing employees to concentrate even more on their core competence: the meticulous assessment of component quality.”

Project manager Christian Ewert sums it up when he says: “The bottom line here is, we’ve created one of the world’s most cutting-edge measurement lines in turbine disk production.” Regarding the technology, it was a team effort. The NC programs (NC = Numerical Control) come from MTU itself, while the machines are based on solutions from a whole range of proven partners.

The facility shows where developments in manufacturing and final inspection are heading: automation will be used wherever it can actively support employees in a variety of auxiliary tasks.
